Standard Size Ultra Violet System - Up to 22L / minute Flow with Pre-Filter
ClearLight™ Ultra Violet System - 22L per min
The 'perfect solution' for people with private water supplies
This is the most popular size Ultra Violet system we stock.
It's designed for a flow rate of up to 22 litres per minute - which is well within most standard size family homes.
Is This the Right Size for You?
UltraViolet filters should be sized according to the flow rate of water going through them.
Flow rate is different to water pressure ie "Bar". (This is because, for example, 3 Bar of pressure will result in a different flow rate on a 15 mm vs a 22mm diameter pipe).
You can read more about your flow rate, and how to measure it here
Check the UV Filter Size Chart
There's no point in getting a UV filter that's either too large or too small. Checkout this chart where you can click through to your right size filter.
It includes the variations between being "off grid" vs on normal mains electricity
More info here Getting the Right Size Ultra Violet filter
Pre Filters

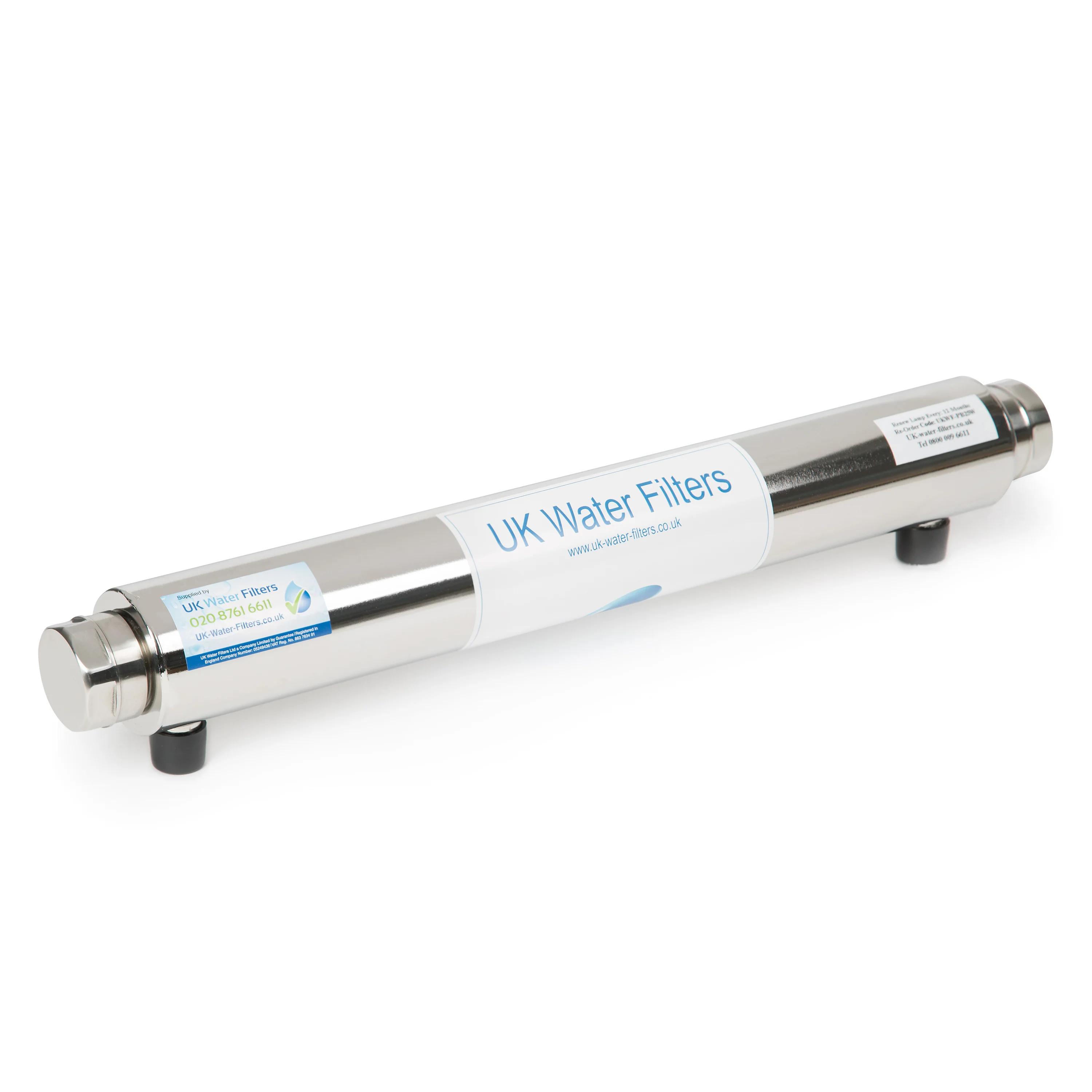

UV systems are long thin tubes with what looks like a fluorescent bulb sitting in the middle. (This is the UV lamp).
The incoming water flows down the tube, around the UV light/lamp.
Any micro-organism (ie bacteria and viruses) that are hit by the light will be rendered harmless.
However any sediment / particles might create a "shadow effect" / "umbrella effect" and help the micro-organism to escape being exposed to the UV light.
The pre-filter removes these sediment / particles.
Running Costs
The UV lamp/bulb needs changing every 12 months. This is regardless of usage. (For example; if you go away for a few months, to ensure total safety you would still need to change the lamp/bulb 12 months after installation.
Cost of replacement lamp for this unit £67 (Check the product page for current quantity / discount deals)
The pre filters change rate will vary. It depends on how much sediment / dirt they trap. This varies with the quality of your local incoming water - which can change after storms etc.
Assume the pre filter cartridges will last at least three months
Cost of replacement pre-filter cartridge for this unit £15.95 (Check the product page for current quantity / discount deals).
You can get good discounts here if you buy in bulk. But we suggest you don't do that until you know how many you need.
(You can store the pre-filters for years but people tend to 'lose them".)
*Kit Includes Everything You Need
What you get
The kit includes everything you need to get going
- 1x UV unit (Casing / Sleeve / Ballast and Lamp)
- 3 Pin plug for standard UK Mains electricity.
- 1x Housing unit (1 inch BSP female)
- Wall mounting bracket
- 1x Pre Filter inserted in the housing
- 1x Filter changing wrench spanner
What's not included
The 1 inch BSP connection for the pre filter housing - because this depends on your water pipe diameter ie you might have 15mm / 22mm or 30mm etc.
However these connections are readily available in any plumbing / hardware store. Just tell your plumber to bring two - one for each side.
How to Order
If you're happy that this is the right unit for you you can go ahead and order it anytime 24/7 on the Money Back Guarantee basis.
Simply use the "Add to Your Basket" button at the top of the page
Or if you're not sure yet then you can contact us by email with any questions, for a speedy response, or call us during office hours.
Further Information on UV Filters
High vs Low Quality UV Water Filters
How to find your water's flow rate
Getting the Right Size Ultra Violet filter
Off grid / Solar Power 12V DC and Other non-mains electricity sources
How much electricity does a UV use / Costs
ORDER ANYTIME Day or Night 24/7 for NEXT DAY DELIVERY
With FREE Delivery
Immediate Dispatch
Purchase with Total Confidence
Money Back Guarantee
Click here for delivery information
No hidden extras
If you don't like what you get, send it back for a full no quibble refund.
If for any reason you decide to return your purchase we promise you a no questions asked THREE MONTH Money Back Guarantee. Click here to read the "large print" about our Money Back Guarantee.
PLUS We'll even pay your return postage !
Please order now to secure today's sale price.
Product Code: UVA22L
Original: $545.73
-70%$545.73
$163.72Product Information
